Looking for a different type?  Let us know.

Save money!  Ask if an older, rebuilt model is available

Request a quote or more info from sales@jasgraphics.net

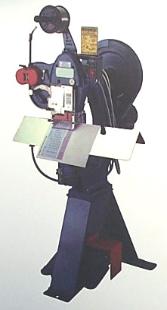

S3A Bindery Stitcher
MODEL S3A 7/8" - The two (2) sheet to 7/8" capacity stitcher
The S3A 7/8" performs like three stitchers in one. It's furnished with three sets
of formers and drivers:

a set for #25 round wire (2 sheets to 1/4")
a set for #20 x #25 flat wire (1/4" to 1/2")*
a set for 19 x 21 1/2 flat wire (1/2" to 7/8")
As a result, the most particular customer will be pleased with perfect stitching
on any job from two sheets to 7/8". The unit comes with saddle, flat table and
gauges for flat and saddle stitching.

MODEL S3A 1 1/8" - For consistently thick flat work ranging from 1/8" to 1 1/8".
Features improved cut-off mechanism with carbide tip for #18 x 20# (type 230)
high carbon book-binders wire.

Comes with table and gauges for flat stitching. Saddle is optional. (for use in
the 1/8" to 1/4" work range only).
Stitchmaster
The StitchMaster is quiet, fast, dependable and inexpensive - ideally
suited for small print shops. It is designed to be clamped to any work
table or to a floor stand, available separately. Two StitchMasters can be
connected to form a two-headed machine.
Also available in Dual Head
Stitching Capacity . . . . . . . . . . . . . . . . . . Two Sheets to 1/4” (6.4 mm)
Wire Types . . . . . . . . . . . . . . . . . . . 23 through 28 round or 21 x 25 flat
( 25 gauge round standard )
Throat Depths
Flat (Horizontal) . . . . . . . . . . . . . . 5” (12.7 cm)
Saddle (Diagonal) . . . . . . . . . . . . . 9” (22.9 cm)
Side Stops . . . . . . . . . . . . . . . . . . . 2” - 14” (5.1 - 35.6 cm)
Power Requirements
SM-A . . . . . . . . . . . . . . . . . . . 115VAC 50/60 Hz
SM-C.E. . . . . . . . . . . . . . . . . . . . 230VAC 50/60 Hz

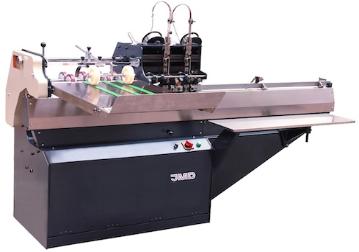

Saddle Stitcher
2 sheets to 1/8" (3mm) capacity
Average production speed of 30 to 60
booklets a minute
Stock material dimensions from 3-1/2x5"
minimum to 12x17-1/2" maximum (89x127 -
305x450mm)
Standard with either two Swivel-style or two
Side Feed-style Stitcher Heads
Automatic stock feeding, stitching, clinching
and conveying
Deluxe, Bostitch and Interlake (ISP) are now Deluxe Stitcher Company with many options for your
stitching, stapling and booklet making needs.  Let us know what task you need to perform and we
will guide you to the correct machine for your application. sales@jasgraphics.net
