Baum 714XLT Ultrafold Tabletop folder 1st and 2nd Stations
- Non-marking, continuous feeding with bottom feed system
- Toner resistant and static dissipative folding rollers
- Sealed ball bearings, no lubrication needed
- Removable cartridge design slitter shafts
- Gear-driven folding rollers, no slippage during folding
- Automatic roller tensioning
- Quiet pump that handles both the vacuum and the air blow
- UL approved
- Second pass folding capability with exclusive air control system
- Total counter
- Loads and unloads from the same end of the machine
- Feeds laser, offset and other digital printed stocks
- Air/vacuum feed system handles sensitive imaged stocks to prevent
marking - Requires less floor space than larger floor model folders but can
handle a 14 x 20" nominal sheet and up to a 14 x 25.5" sheet - Can fold paper sizes from 3 x 5" to 14 x 25.5" long
- Feed table extension that can handle longer sheet lengths, enabling
tri-folding of 25.5" long sheets from brochures, etc. - Six pre-programmed fold settings
- Programmable memory settings for 20 custom folds
- Batch counter that can count up or count down
- Variable batch data entry
- Total counter
- PLC touch screen control panel with pictographs and color display
- Static reduction devices
- Sound covers standard
- Motorized delivery stacker with independent speed control for the drive
- Flip deflector, non-marking fold plate technology
- Diagnostic messages/fault detection
- Jam detection using input and output sensors
- Multiple languages to select for display: English, Spanish, French, or
German - Units of measurement display in metric or inches

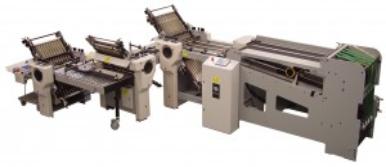

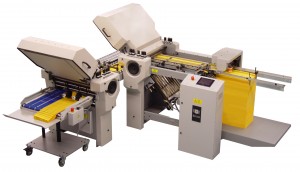

20-1/2" x 30" Floor Models in Continuous and Pile Feed Versions
|
and is designed for high productivity and years of trouble-free
operation. With a lower profile feeder, optional coupling
modules and a variety of optional delivery systems this folder
is one of the most versatile machines on the market.

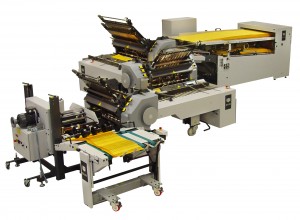

Specifications:
Maximum Sheet Size: 32.28″ W x 50.39″ L (82cm x 128 cm)
Minimum Sheet Size: 5.51″ W x 7.09″ L (14cm x 18cm)
Minimum fold length: 1.75″ (3.5cm)
Electrics: 220/3/60
Maximum Folder Speed: 9055 inches per min (230 m/min)
4 plate and 6 plate versions available
operation. With a lower profile feeder, optional coupling
modules and a variety of optional delivery systems this folder
is one of the most versatile machines on the market.
Specifications:
Maximum Sheet Size: 32.28″ W x 50.39″ L (82cm x 128 cm)
Minimum Sheet Size: 5.51″ W x 7.09″ L (14cm x 18cm)
Minimum fold length: 1.75″ (3.5cm)
Electrics: 220/3/60
Maximum Folder Speed: 9055 inches per min (230 m/min)
4 plate and 6 plate versions available
BAUM K20 Knife Folder (Comparable to Heidelberg VFZ-52)
The BAUM K20 knife folder is unique folding solution for bulky
folds that a buckle folder cannot produce. Great for double
gatefolding, newspaper inserts, or instruction sheets, such as
those with multiple languages requiring many pages
Specifications:
Can fold signature sizes from 4.72″ x 3.94″ up to 20.47″ x
14.17″
Independent mobile unit
Independent drive
Two 1.75″ combination fold rollers
The BAUM K20 knife folder is unique folding solution for bulky
folds that a buckle folder cannot produce. Great for double
gatefolding, newspaper inserts, or instruction sheets, such as
those with multiple languages requiring many pages
Specifications:
Can fold signature sizes from 4.72″ x 3.94″ up to 20.47″ x
14.17″
Independent mobile unit
Independent drive
Two 1.75″ combination fold rollers
